Aftermarket gearbox bearing, seal and service hardware kit for the listed Kubota mower deck configurations. FLIP 707727. Gearbox family reference K5681-33104 identifies the serviced assembly; this kit does not replace that complete assembly.
What’s included

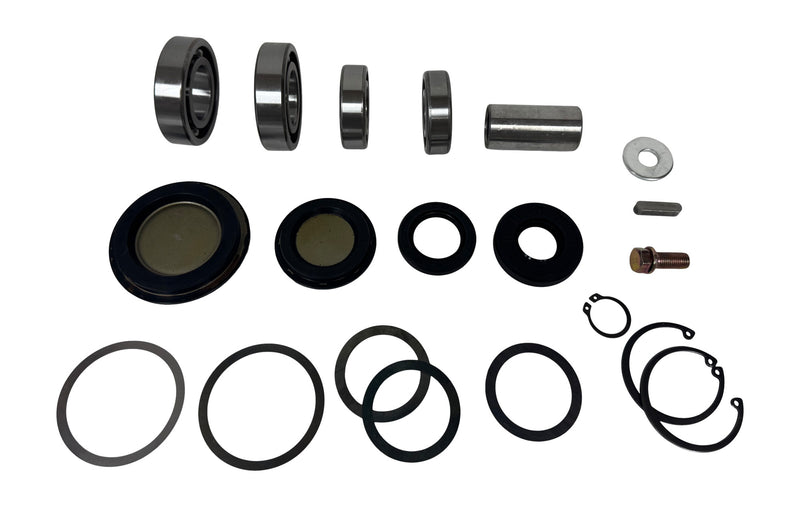

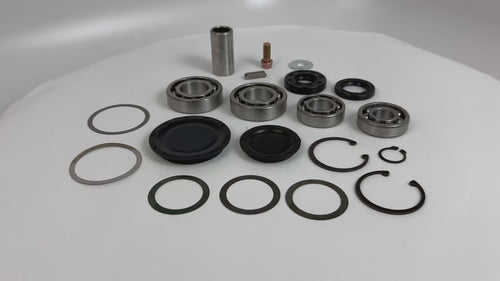

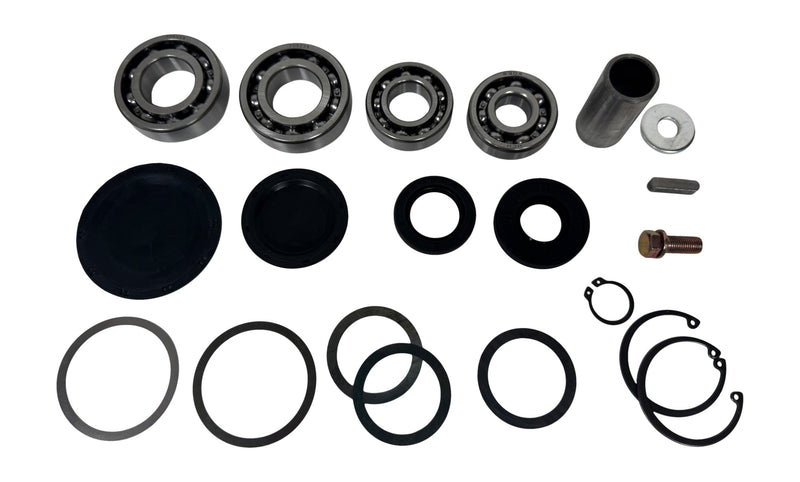

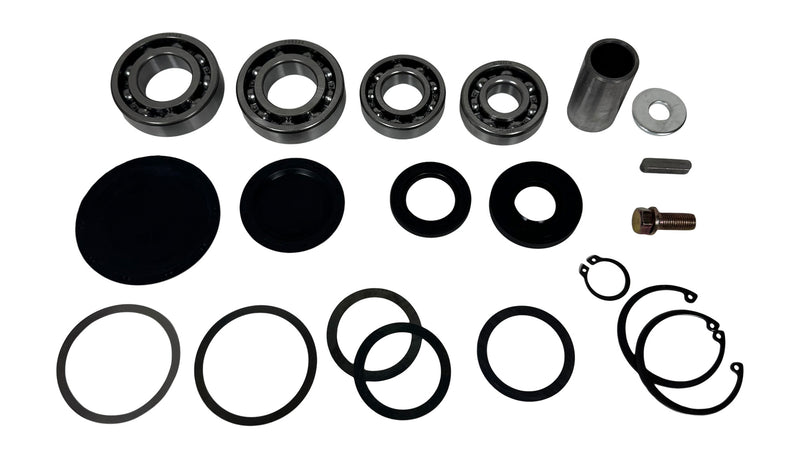

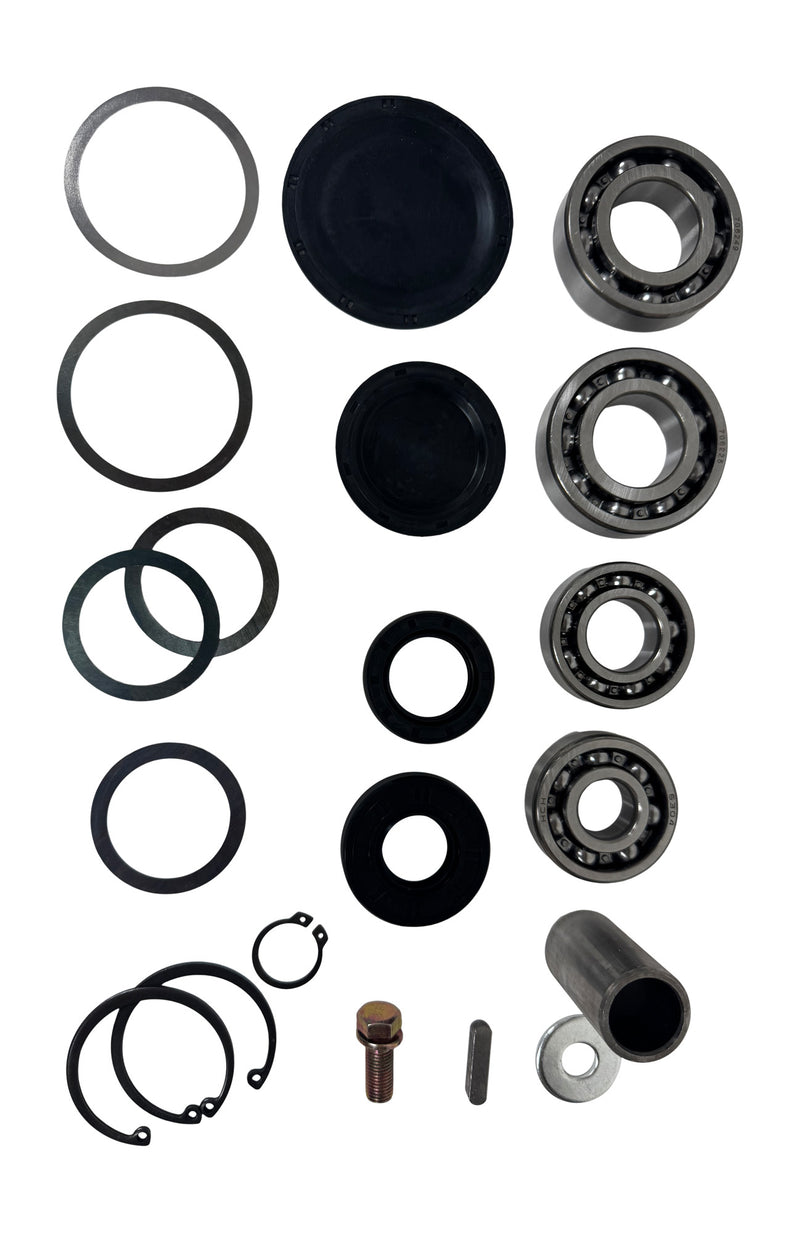

Bearing, seal and service hardware kit; exact supplied parts and quantities are listed below.
Gears, shafts, housing and lubricant are not included. This is a selective service kit, not a complete gearbox or every part needed for an overhaul.
- FLIP part
- 707727
- Kit type
- Bearing / seal service kit
- Serviced gearbox reference
- K5681-33104
- Package scope
- Listed parts only
Check before you order
Match the full mower deck model, machine configuration and serial number. Tractor model alone does not confirm fit. Select the bearing version and shim thickness required by the service manual; supplied alternatives and extras are not all installed together.
F3710 applications with a supplied 05712-00728 feather key are limited to the serial range printed below. Later shafts use key K5684-33540, which is not included. F2510/F2510E versions specifying that key are not listed as direct fit.
Deck applications and version notes
- RCK60P-21Z; 70712-33550 through 43962, K5687-33550 from 43963
- RCK60P-28Z; 70712-33550 through 46492, K5687-33550 from 46493
- RCK60P-28Z(ZD25F); 70712-33550 through 46492, K5687-33550 from 46493
- RCK60P-F36(F2680E/F3080); 70712-33550 through 12447, K5687-33550 from 12448
- RCK60P-F36(F2880E-F/F2880-F); 70712-33550 through 12443, K5687-33550 from 12448
- RCK60P-F36[F3680]; 70712-33550 through 12447, K5687-33550 from 12448
- RCK60R-331Z(ZD331RP/ZD326RP); 70712-33550 through 13202, K5687-33550 from 13203
- RCK60R-331Z(ZG327RP); 70712-33550 through 13202, K5687-33550 from 13203
- RCK60R-331Z(ZG327RPA); 70712-33550 through 13202, K5687-33550 from 13203
- RCK60R-331Z(ZG327RPA-3) [catalog serial through 15070]; 05712-00728 through 15070
- RCK60R-331Z(ZG327RPA;>=B0001)
- RCK60R-F36; 70712-33550 through 10960, K5687-33550 from 10961
- RCK60R-F36(F2680E/F3080); 70712-33550 through 10960, K5687-33550 from 10961
- RCK60R-F36(F3710) [catalog serial through 11973]; 05712-00728 through 11973
- RCK60R-F36[F3680]; 70712-33550 through 10960, K5687-33550 from 10961
- RCK60RP-1200Z
- RCK60RP-1200Z(ZD1211R-3) [catalog serial through 13697]; 05712-00728 through 13697
- RCK60RP-1500Z(RL1611RL) [catalog serial through 10201]; 05712-00728 through 10201
- RCK60RP-1500Z(ZD1511RL)
- RCK60RP-1500Z(ZD1511RL-3)
Australian-market references: verification required
Australian-market applications below were listed previously and require regional verification before ordering. Confirm the original bearing, key and seal references against your exact deck. US catalog serial notes do not automatically apply to Australian versions. These regional references are not a verified direct-fit claim.
- RCK60P-F36(F2880-AU)
- RCK60P-F36(F3680-AU)
- RCK60R-331Z(ZD331RP-AU)
- RCK60RP-1200Z(ZD1221R-AU)
Supplied parts and quantities
Quantities are supplied parts, sets or packs as shown. Select shims to the service manual specification.
Before installation
Inspect reused parts and follow the exact equipment service manual for shim setup, torque and lubricant.
Searching with a code that has no dashes?
You can search our site with or without dashes — for example, RCK60P-21Z or RCK60P21Z. The codes below are alternate search formats for the models and service references already listed above. They do not add compatible models or supplied parts.
Deck model search codes: RCK60P21Z, RCK60P28Z, RCK60PF36, RCK60R331Z, RCK60RF36, RCK60RP1200Z, RCK60RP1500Z.
Part and gearbox reference search codes: 0113351025, 0401550100, 0461100520, 0461200220, 0571200728, 0810106205, 0810106304, 3633028410, 3633028420, 6331332270, 7071233550, 7071233570, 7653533440, 7653933410, 7C76551260, K564733100, K567133342, K568133100, K568133102, K568133103, K568133104, K568133105, K568733550, K576133540. Check the supplied-parts table to see what this kit includes.
Independent aftermarket product. Kubota names and numbers identify applications and service references; this is not a genuine Kubota product.
Aftermarket replacement part. Not affiliated with or endorsed by the original equipment manufacturer.
