Deck Spindle Assembly for Snapper NZMJ25612KH / ZF6100M – 7058237YP Housing + 7059311YP Shaft

Save $ 17.70 Save $ 17.70
Original price $ 294.97
Original price $ 294.97 - Original price $ 294.97
Original price $ 294.97
Current price $ 277.27
$ 277.27 - $ 277.27
Current price $ 277.27
Aftermarket replacement part

Direct buying discount applied. Prices on our site are lower than our marketplace listings to reflect the absence of third-party platform fees.

The crossed-out price is our current listing for this item on those marketplaces — not a former flipmfg.com price.

Replaces OEM:

  • 54011
  • 7054011YP
  • 7054011
  • 57779
  • 7057779
  • 7058237
  • 7058237YP
  • 2-9252
  • 7029252
  • 5-4017
  • 7054017
  • 7059311
  • 7059311YP
  • 2-9253
  • 7029253
  • 7029422
  • 7029422YP
  • 7029254
  • 7029254YP
  • 7029274
  • 7029274YP
  • 7029384
  • 7029384YP
  • 7029302
  • 7029302YP
  • 7029275
  • 7076998

Housing and shaft supplied together as one spindle. OEM numbers below include the assembly and its individual components; match each number to its role in the table. Confirm the exact deck and original spindle.

Will this fit your machine?

Match the full mower and deck tags, original spindle diagram, six-bolt mounting pattern and bolt direction, shaft ends, pulley position and blade attachment. NZMJ25612KH uses the listed 61-inch arrangement; ZF2500KH requires the matching ZF6100M deck. A model match alone does not confirm every configuration.

Listed applications — check the part details below (60)

Show 44 more models

Not sure? Start a guided fitment text to 903-320-4519 — we'll verify for free.

Mention part 705662 in your text so we know which one you mean.

Availability:
in stock, ready to be shipped
Free standard shipping · contiguous U.S.
Estimated standard delivery: See delivery information at checkout

Our standard 3–7 business-day transit estimate applies to in-stock items after dispatch.

Delivery details

Standard shipping is free within the contiguous U.S. The estimated delivery range uses our standard 3–7 business-day transit time after dispatch, with weekends and U.S. postal holidays excluded. Delivery varies by destination. It is not a guaranteed delivery date.

Need it sooner? Expedited options and prices are available at checkout. Shipping policy

Shipments to Canada require additional shipping costs with extended delivery times.

Top Quality Store on Google View details
60-day returns Prepaid label — no restocking fee
Secure checkout Major cards, PayPal, Apple Pay, and Shop Pay

Before you order

Find the right fit.

Start with your equipment tag and the original part number. If you’d like a hand, send us a photo and we’ll help.

Part information

Product details.

See what comes with this part and the details that help you choose the right version.

Replace the spindle housing and shaft together. FLIP 705662 is one assembled aftermarket mower deck spindle for listed Snapper applications, including NZMJ25612KH and the ZF6100M deck. It combines the housing and shaft used in the 7058237YP housing / 7059311YP shaft arrangement.

What you get

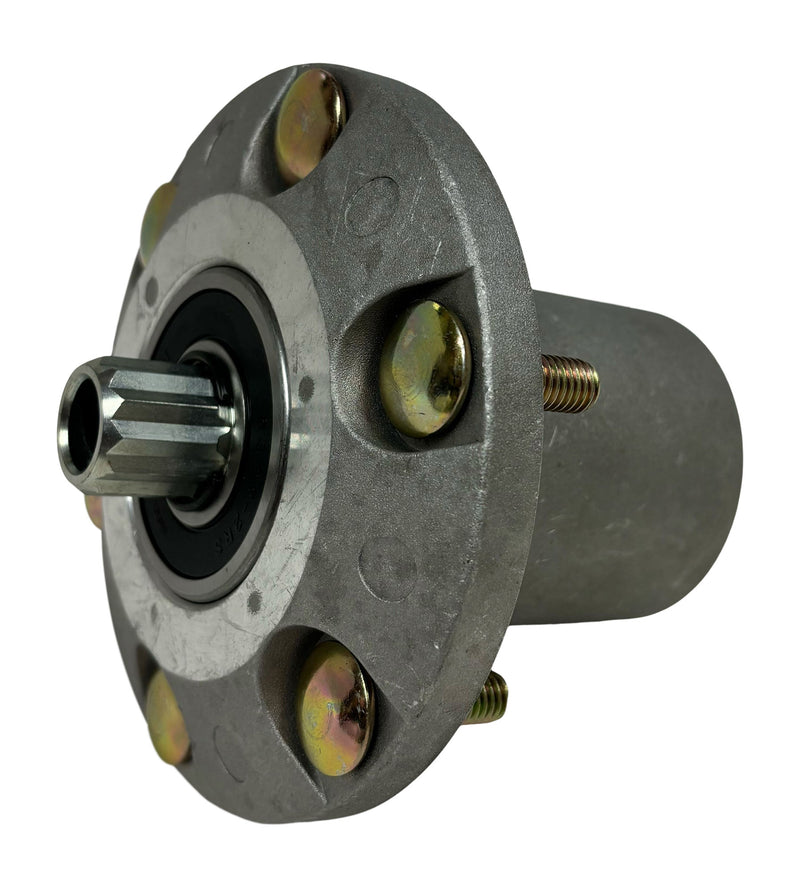

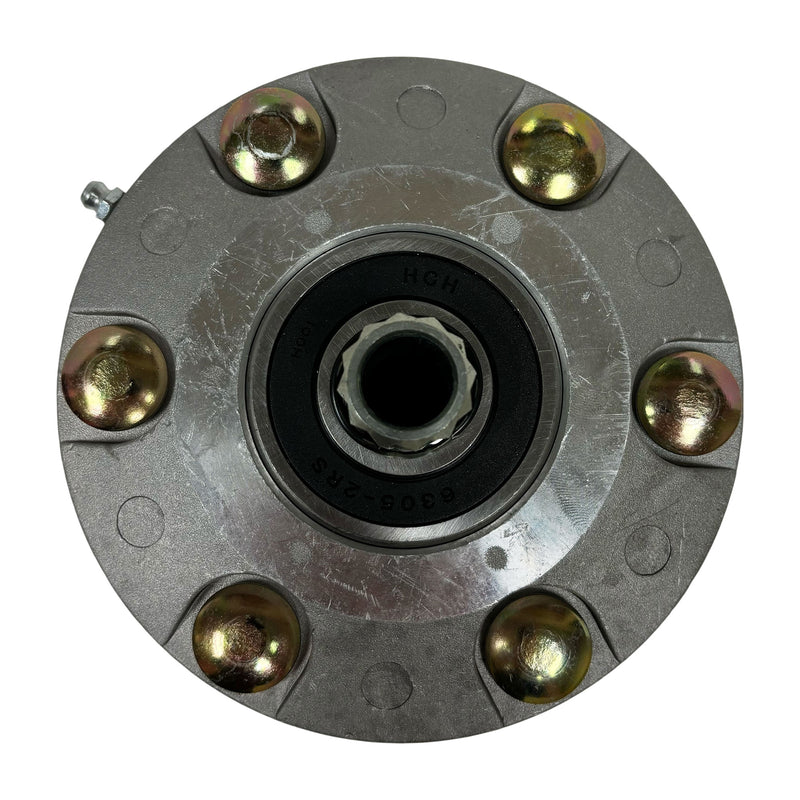

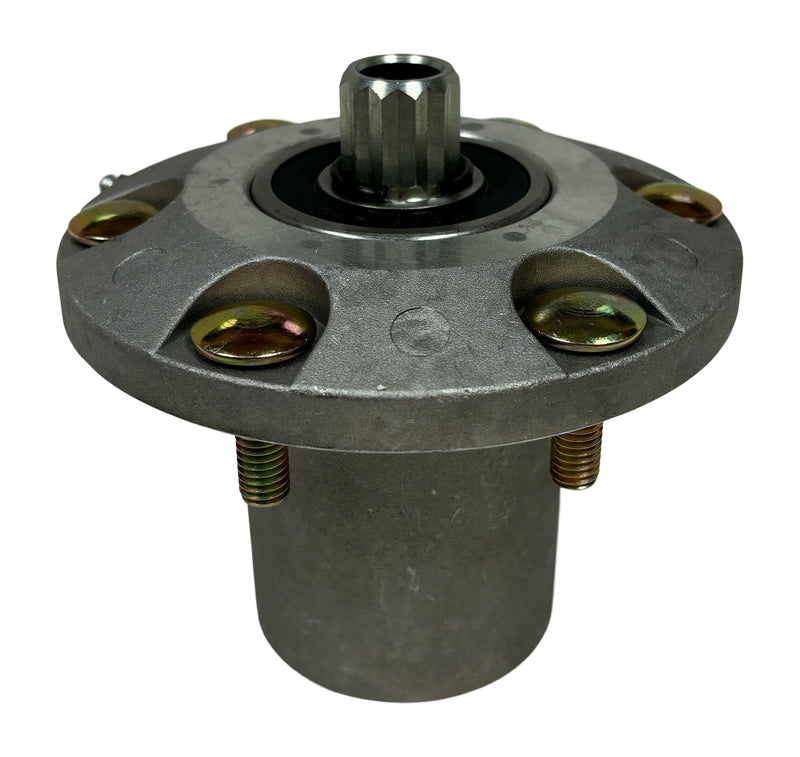

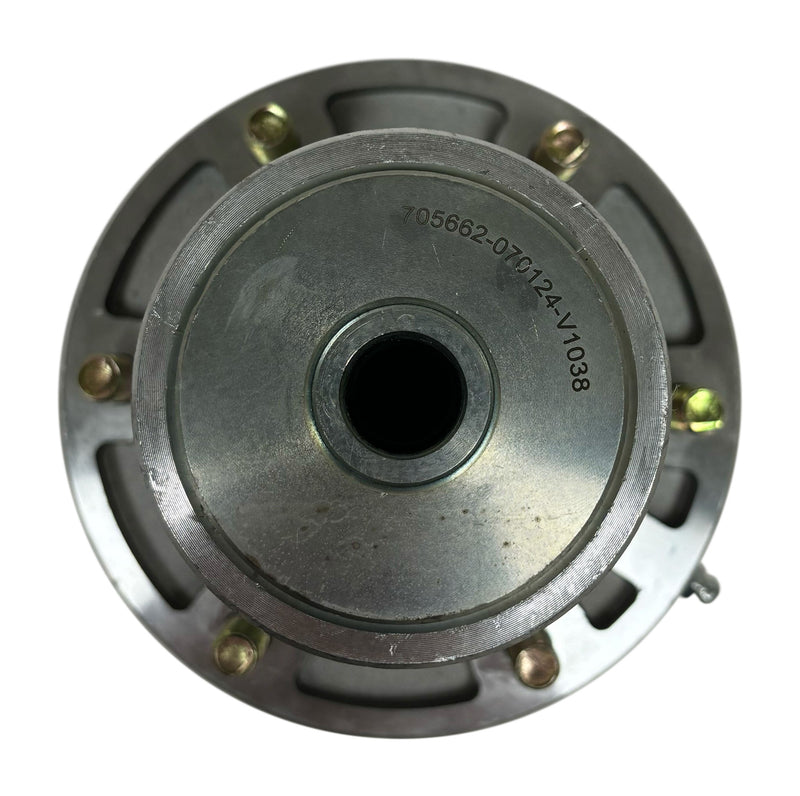

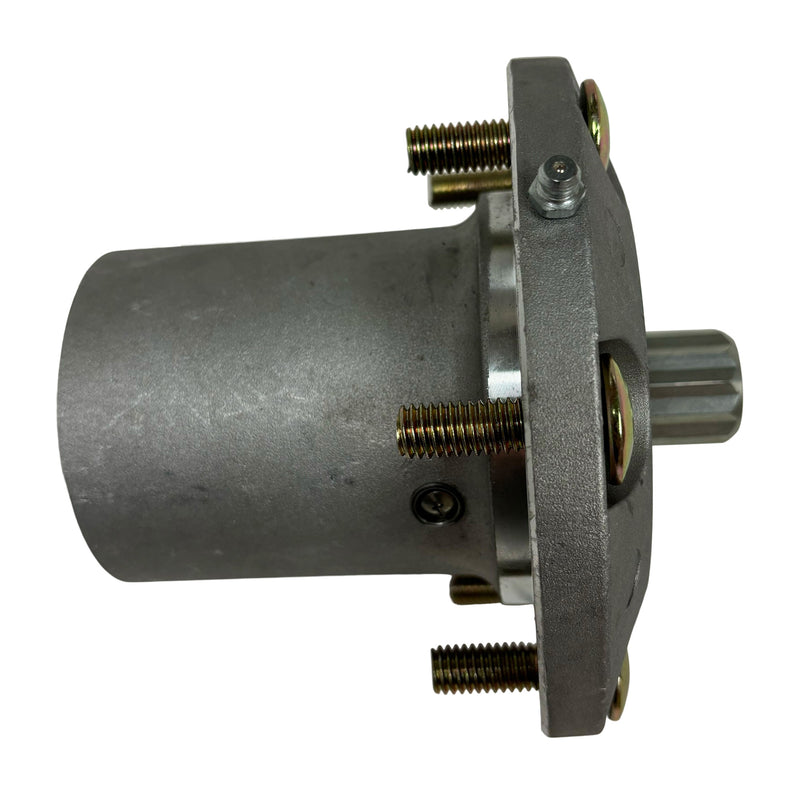

1 × assembled deck spindle: housing, shaft, installed bearings, six pressed-in mounting bolts, grease fitting and vent, as pictured.

Pulley, blade, blade-height spacers, long blade bolt, blade nut and mounting nuts are separate. This listing is for the assembled spindle; we do not sell its shaft separately.

FLIP part
705662
Spindle assembly references
54011 / 7054011 / 7054011YP
Housing reference
7058237 / 7058237YP
Shaft reference
7059311 / 7059311YP

Check your mower and deck

Find the full model and product number on the mower tag and, if separate, the deck tag. Match the spindle in that deck’s parts diagram. Compare the six-bolt mounting pattern and bolt direction, shaft ends, pulley position and blade attachment with your original spindle.

NZMJ25612KH: 61-inch joystick Z-Rider, product 85678 / 7085678. ZF6100M: 61-inch out-front deck; match the deck fitted to your power unit. A ZF2500KH mower name alone does not identify its deck.

Also listed in the NZM Series 2 parts book: NZM19482KWV (85673), NZM21522KWV (85674), NZM25612KWV (85675) and NZM27612KH (85676). Existing NZM Series 3 applications include NZM19483KWV, NZM21523KWV, NZM25523KWV, NZM25613KWV and NZM27613KH.

The application list also includes older SP, SPE, SPA, SPLH, HZS, LT and FM equipment. Match the exact deck and spindle arrangement; family name or cutting width alone is insufficient.

What the Snapper part numbers mean

Snapper catalogs identify the housing and shaft separately. Older books also list spindle sub-assembly 54011 / 7054011, later 7054011YP. The component references below help you compare that original arrangement with this assembled FLIP replacement.

Original spindle components — catalog quantities per spindle, not a pack of loose parts.
ComponentSnapper catalog referenceCatalog quantity
Housing7058237 / 7058237YP; earlier 2-9252 / 7029252 and 5-4017 / 7054017 housing references1
Shaft7059311 / 7059311YP; earlier 2-9253 / 70292531
Bearings7029422 / 7029422YP2
Internal bearing spacer7029254 / 7029254YP1
Retaining ring7029274 / 7029274YP1
Grease vent7029384 / 7029384YP1
Pressed-in mounting bolts7029302 / 7029302YP6
Grease fitting7029275; some books list 70769981

These are OEM component references, not eight interchangeable numbers for one part. Internal service parts and later bearing-seal arrangements must be compared before rebuilding an original spindle. No loose OEM service parts or separate pre-seal kit are supplied.

Before installation

The spindle is supplied pre-greased. Check its condition and lubrication before use. Keep the original pulley, blade spacers and hardware until you compare both assemblies. Check their condition and follow the mower’s service instructions for spacer order, lubrication and fastener tightening. Stop and check fitment if the bolt pattern, shaft connection or pulley alignment differs.

Other assembly references

57779 / 7057779 are historical references associated with 7054011YP. Use the exact deck diagram and component comparison above; those numbers do not identify the housing or shaft individually.

Need help? Text 903-320-4519 with FLIP 705662, model/serial tags and photos of the original part.

Aftermarket replacement part. Not affiliated with or endorsed by the original equipment manufacturer.

Product questions

Answers for this part.

What is included with FLIP 705662?
One assembled aftermarket deck spindle with housing, shaft, installed bearings, six pressed-in mounting bolts, grease fitting and vent, as pictured. Pulley, blade, blade-height spacers, long blade bolt, blade nut and mounting nuts are separate.
Does this include both the 7058237YP housing and 7059311YP shaft?
FLIP 705662 combines the housing and shaft in one aftermarket spindle for the listed arrangement. 7058237YP identifies the Snapper housing and 7059311YP the shaft; they are component references, not two interchangeable part numbers.
Does it fit a Snapper NZMJ25612KH?
The 85678 / 7085678 NZMJ25612KH 61-inch joystick Z-Rider parts catalog lists the 7054011 spindle arrangement with 7058237 housing and 7059311 shaft. Compare your original spindle, deck and serial-specific diagram before ordering.
Does it fit a ZF2500KH mower with a ZF6100M deck?
The ZF2500KH power unit can use different decks. For the listed ZF6100M 61-inch deck, compare the original 2-9252 housing / 2-9253 shaft arrangement and later 7058237YP / 7059311YP references. Confirm both tags, shaft ends and mounting pattern; the power-unit model alone is insufficient.
What do 54011, 7054011YP and the other numbers identify?
54011 / 7054011 / 7054011YP identify the historical spindle sub-assembly. 57779 / 7057779 are associated historical references. Housing, shaft, bearing, spacer, ring, vent, bolt and fitting numbers in the table identify separate OEM components, not identical complete assemblies.
Can I buy just the shaft?
This listing supplies one assembled FLIP spindle. We do not sell its shaft separately.
Does this spindle come greased?
Yes. The spindle is supplied pre-greased. Check its condition and lubrication before use, then follow your mower’s service instructions for routine maintenance.
Can I reuse my pulley, blade and hardware?
Compare their fit and condition before reuse. Keep the original blade-height spacers in the correct order and follow the mower service instructions for lubrication and fastener tightening. Stop and check if mounting holes, shaft connection or pulley alignment differ.
Is this an original Snapper part?
No. This is a Flip Manufacturing aftermarket assembly, FLIP SKU and manufacturer part number 705662. Snapper names, models and part numbers identify the original applications and components.
