Steering Sector Gear for John Deere X300 & X500 Series – AM136297

Save $ 3.00 Save $ 3.00
Original price $ 49.99
Original price $ 49.99 - Original price $ 49.99
Original price $ 49.99
Current price $ 46.99
$ 46.99 - $ 46.99
Current price $ 46.99
Aftermarket replacement part

Direct buying discount applied. Prices on our site are lower than our marketplace listings to reflect the absence of third-party platform fees.

The crossed-out price is our current listing for this item on those marketplaces — not a former flipmfg.com price.

Replaces OEM:

  • AM136297
  • M151206
  • M151250

X500 and X520: serial 020001 and above. Pinion gear and full rebuild kit are separate.

Will this fit your machine?

Confirm the tractor model and serial range, then match AM136297 in the steering diagram. Compare gear teeth, shaft/arm layout, linkage holes and mounting. Inspect the mating pinion and bushings when servicing.

Listed applications — check the part details below (5)

Not sure? Start a guided fitment text to 903-320-4519 — we'll verify for free.

Mention part 704641 in your text so we know which one you mean.

Availability:
in stock, ready to be shipped
Free standard shipping · contiguous U.S.
Estimated standard delivery: See delivery information at checkout

Our standard 3–7 business-day transit estimate applies to in-stock items after dispatch.

Delivery details

Standard shipping is free within the contiguous U.S. The estimated delivery range uses our standard 3–7 business-day transit time after dispatch, with weekends and U.S. postal holidays excluded. Delivery varies by destination. It is not a guaranteed delivery date.

Need it sooner? Expedited options and prices are available at checkout. Shipping policy

Shipments to Canada require additional shipping costs with extended delivery times.

Top Quality Store on Google View details
60-day returns Prepaid label — no restocking fee
Secure checkout Major cards, PayPal, Apple Pay, and Shop Pay

Before you order

Find the right fit.

Start with your equipment tag and the original part number. If you’d like a hand, send us a photo and we’ll help.

Part information

Product details.

See what comes with this part and the details that help you choose the right version.

FLIP 704641 is an aftermarket steering sector gear for John Deere X300 & X500 Series.

What’s included

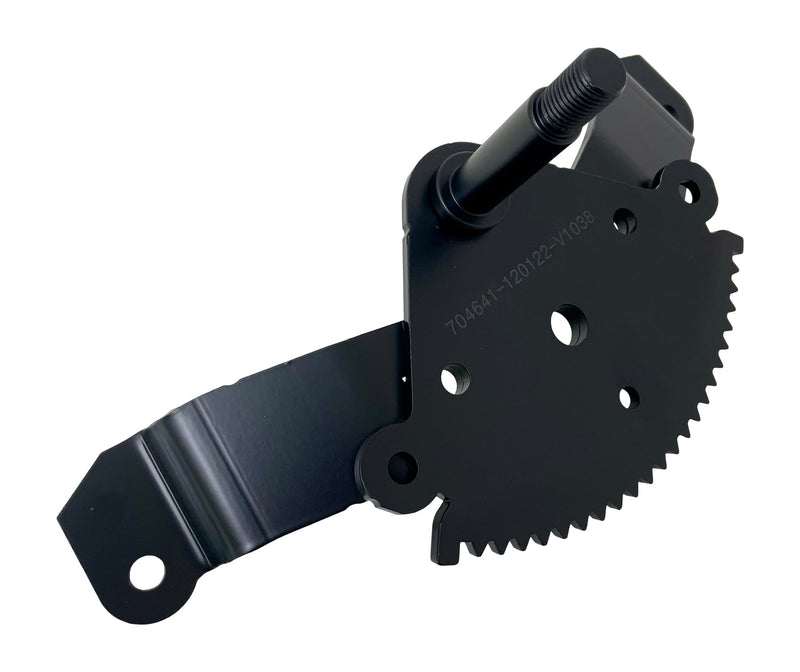

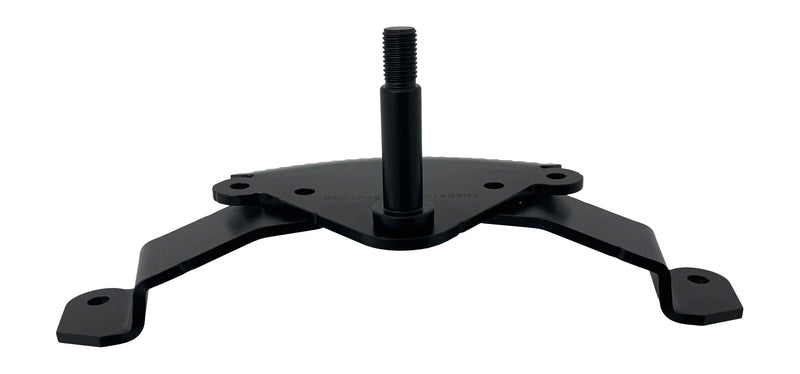

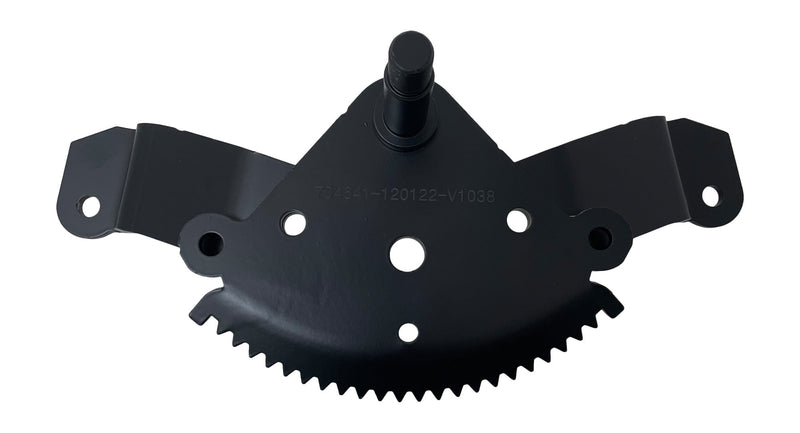

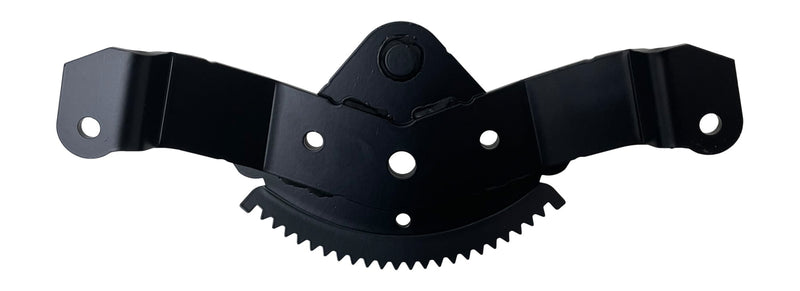

One steering sector gear assembly with the arm and shaft arrangement shown.

X500 and X520: serial 020001 and above. Pinion gear and full rebuild kit are separate.

FLIP part
704641
OEM replacement references
AM136297; M151206; M151250
Part type
Steering Sector Gear
Quantity
1

Check before you order

Confirm the tractor model and serial range, then match AM136297 in the steering diagram. Compare gear teeth, shaft/arm layout, linkage holes and mounting. Inspect the mating pinion and bushings when servicing.

Reference details

AM136297 is the steering-gear assembly reference; M151206 and M151250 are related prior/component reference leads. Confirm the supplied assembly rather than assuming each number names an identical loose part. X300, X320 and X340 also require a model-specific diagram check.

Need help? Text 903-320-4519 with FLIP 704641, model/serial tags and photos of the original part.

Aftermarket replacement part. Not affiliated with or endorsed by the original equipment manufacturer.

Product questions

Answers for this part.

What is included with FLIP 704641?
One steering sector gear assembly with the arm and shaft arrangement shown. X500 and X520: serial 020001 and above. Pinion gear and full rebuild kit are separate.
How do I confirm this fits?
Confirm the tractor model and serial range, then match AM136297 in the steering diagram. Compare gear teeth, shaft/arm layout, linkage holes and mounting. Inspect the mating pinion and bushings when servicing.
How are the reference numbers used?
AM136297 is the steering-gear assembly reference; M151206 and M151250 are related prior/component reference leads. Confirm the supplied assembly rather than assuming each number names an identical loose part. X300, X320 and X340 also require a model-specific diagram check.
Is this an original equipment manufacturer part?
No. This is a Flip Manufacturing aftermarket replacement, FLIP part 704641. OEM names and numbers identify the application only.
